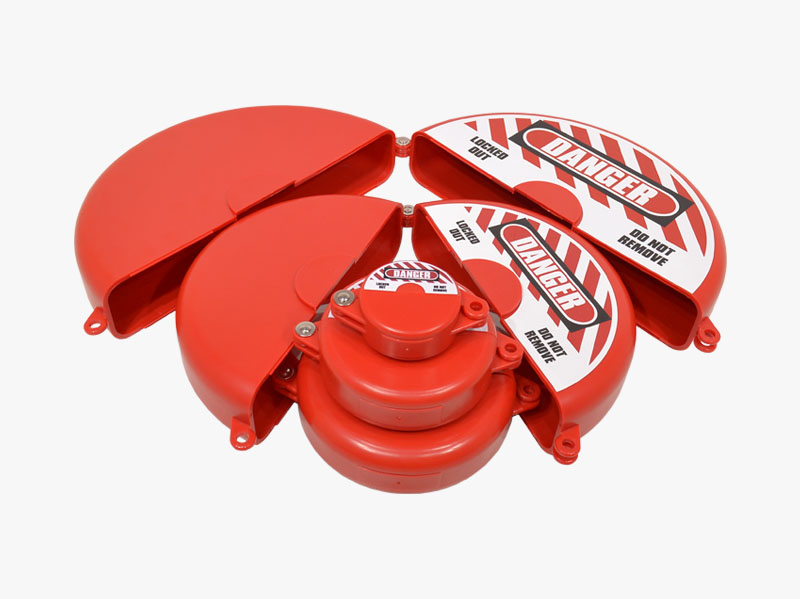

Gate Valve Lockout - LOK001 - LOK005
These gate valves are comprised of 2 flattened half moons with a hollow centre. Hinged at one side, they are placed over the valve and then closed, ensuring that the valve wheel is tamperproof. Use a hasp if more than one padlock is required to lockout the device.
Extra Large Gate Valve Lockout - LOK204
Our largest sized gate valve lockout is suitable for valve handles of a diameter from 330mm up to 450mm. It also has an integral clip out centre and a built in facility to use 4 padlocks on the unit without the use of a hasp.
When not in use one side of the lockout can fit within the other to allow for ease of transportation and storage.

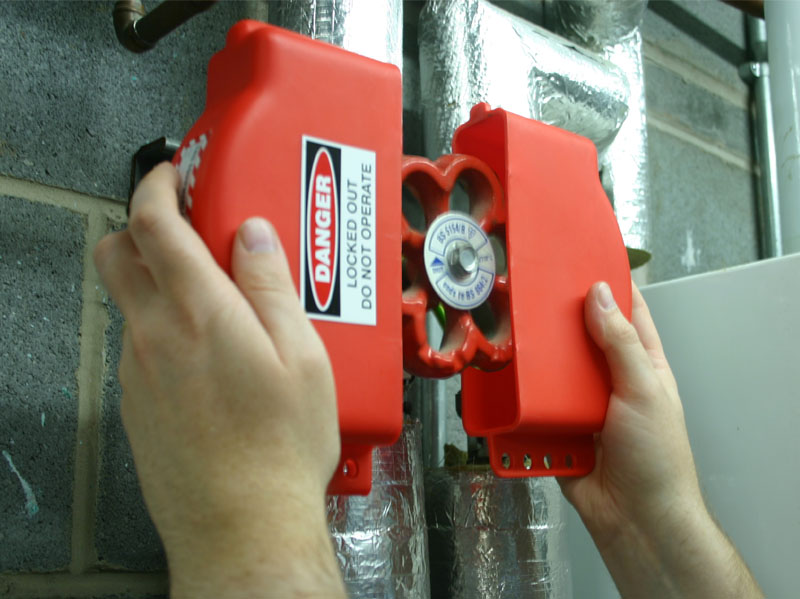

Adjustable Gate Valve Lockout - LOK006
2 separate pieces which whilst in place over the valve are slid into each other to enclose the handle.
This design allows it to fit valve handwheels from 25.5mm through to 165mm diameter

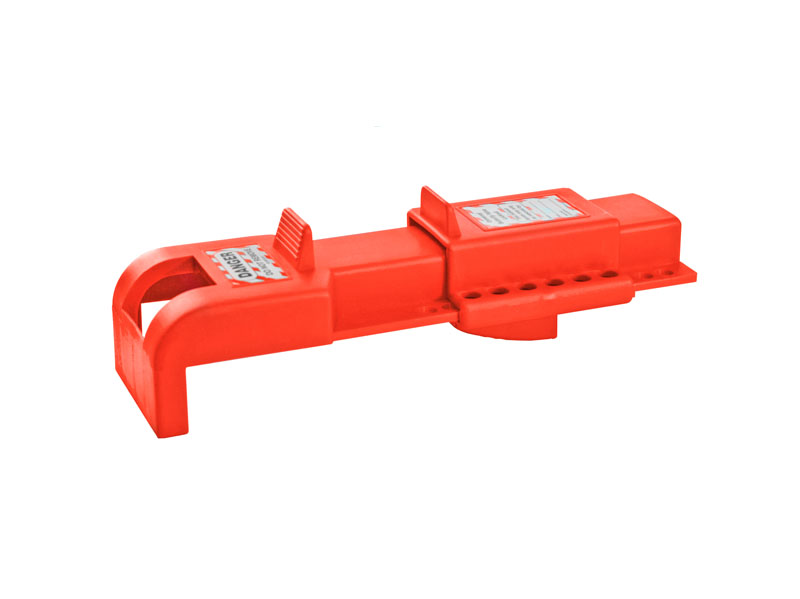

Butterfly Valve Lockout - LOK018
When slid into position the wedge on the slider section prevents the compression handle being squeezed, preventing operation of the valve.
Working in a similar way to the standard Ball Valve lockouts, the wedge on the slider section sits between the compression handle and lever, preventing operation.
Flange Ball Valve Lockout - LOK186
On flange ball valves the lever handle can be removed after operation. Once the valve is in the desired position and the handle removed, this lockout device fits over the top of the stem ring.
The two sections of the device slide together over the top of the stem, ensuring it is suitable for various sizes of valves. Hole size: 46 x 38mm
Ball Valve Lockout - LOK024
The two halves of a Ball Valve Lockout encompasses the ball valve lever along with a padlock and tag to secure it from use.
