Electrical Plug Lockout – LOK188
Manufactured from polypropylene, the hexagon design opens up in two halves and is suitable for all kinds of industrial plugs. The small can accommodate 2 padlocks where as the large can accommodate 4. Both lockouts can house padlocks with a shackle diameter of 7mm or less.

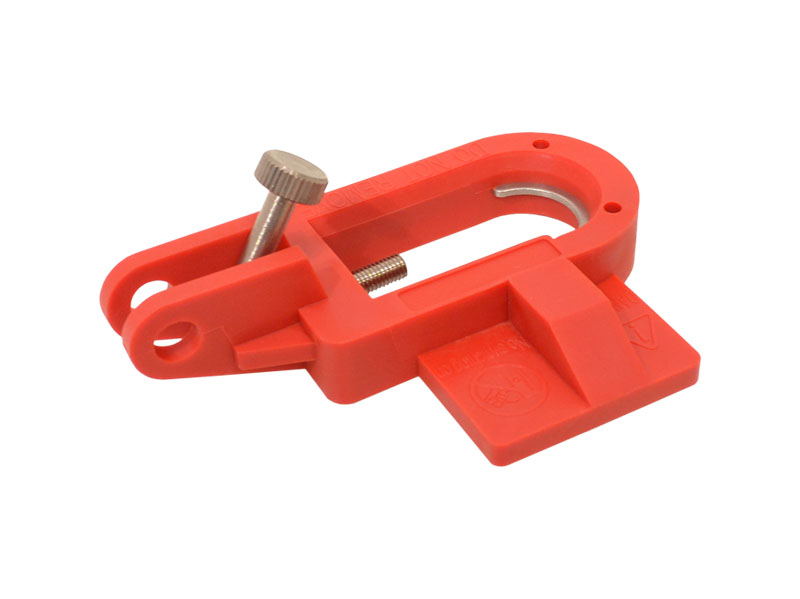

Large Circuit Breaker Lockout – LOK211-LOK212
Designed to fit on the largest circuit breakers. Turn the circuit breaker into the off position and place the lockout over the toggle switch. Tighten the screw thread to the toggle with the integral pedal sitting into the housing of the breaker to prevent removal.

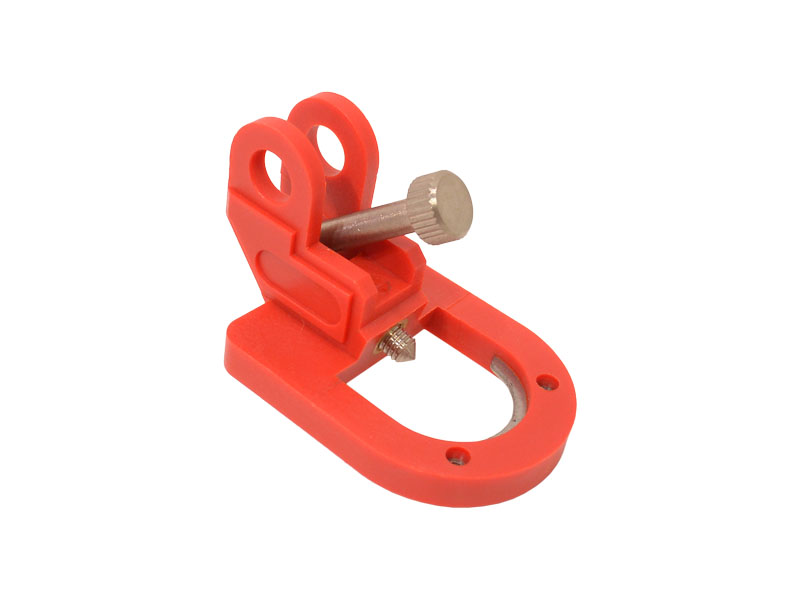

Multi-Function Circuit Breaker Lockout – LOK210
Fits on top of a variety of push button breakers. This unit traps the button to help prevent it being pushed. Designed primarily as a visual deterrent to prevent accidental reactivation of the circuit.
Push Button Lockout – LOK126
Designed to encapsulate standard push buttons, this lockout comes with a locking cap to ensure the enclosure cannot be removed without fully removing the padlock.

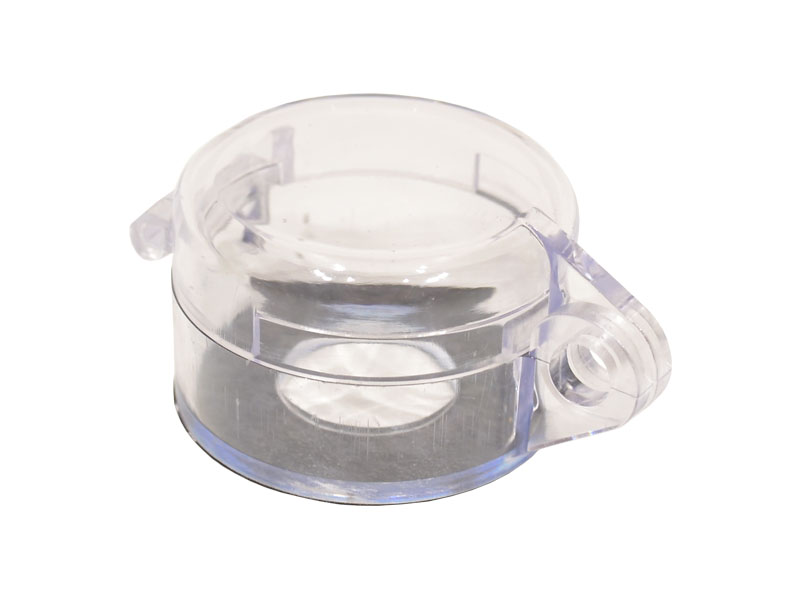

Button Lockout – LOK194
Manufactured from glass resin polycarbonate, these lockouts permanently fit over the stem of the button and adhere to the back panel. Available in two sizes, they can be locked out using our standard padlocks or a suitable hasp.
Electrical Cylinder Lockout – LOK058
This large electrical plug lockout has 2 interlocking cover plates allowing plugs with various sizes of cable to be inserted inside. Interior size of 84mm dia. x 150mm and will accept cable widths up to 34mm dia.
Plug Lockout – LOK030
Manufactured from industrial reinforced polystyrene, the unit has been developed to completely enclose electrical plugs to prevent a machine being energized. The small unit is suitable for a variety of electrical connections up to 40mm diameter. Suitable for up to 4 safety padlocks.
The large unit is suitable for standard and larger electrical plugs, including 3 phase connectors. It also has 4 holes of 3 different sizes suitable for pneumatic male air hose connectors. Suitable for up to 4 safety padlocks.
Switch and Socket Cover – LOK215
Ensure vital equipment cannot be accessed by locking off the socket at the wall outlet. This lockout is suitable for standard UK single sockets, and can be used for switches, power sockets, network points etc.
To fit, isolate the power to the outlet, loosen the screws and place the cover behind the faceplate. Re-tighten the screws pulling the cover into place. Please note that the cable gaps are located at the side and may not be suitable for thicker/rigid cables. To use cover with plug sockets, turn the cover 90 degrees. Up to two padlocks can be fitted integrally to the unit.

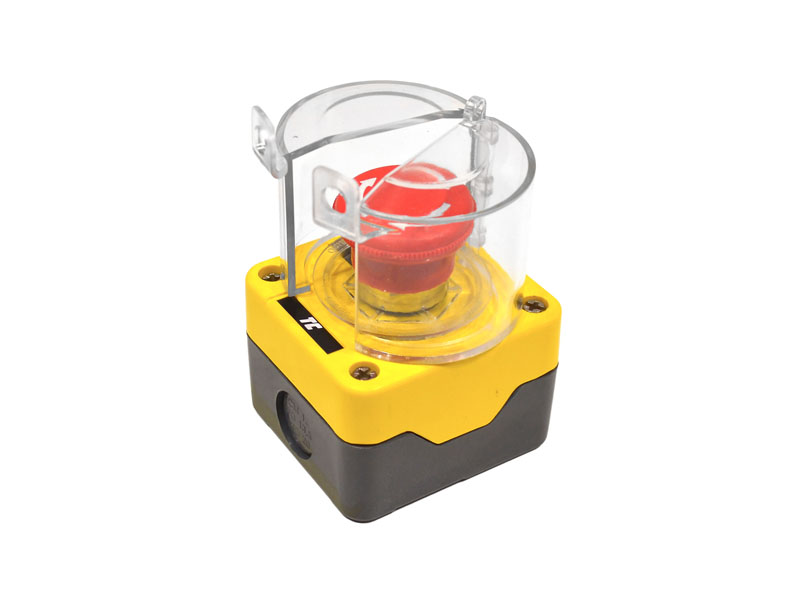

Button Lockout – LOK195
Manufactured from glass resin polycarbonate, this lockout unit fits around the stem of a button which can then be locked out using a standard padlock. This unit can be fixed either permanently or on a temporary basis. To fit permanently, use the circular section around the stem of the button and shut the cover in place when needed.

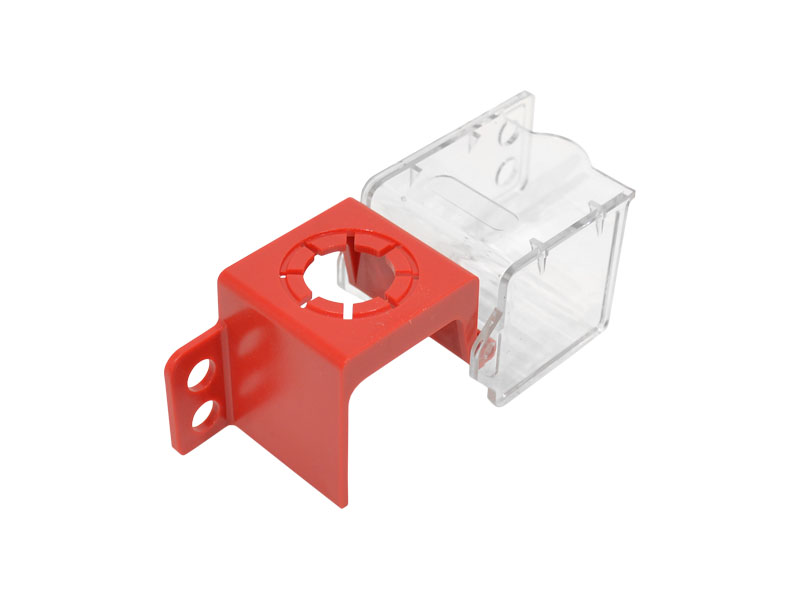

Button Lockout – LOK187
Manufactured from glass resin polycarbonate, this lockout unit fits around the stem of a button which can then be locked out using up to two standard padlocks.

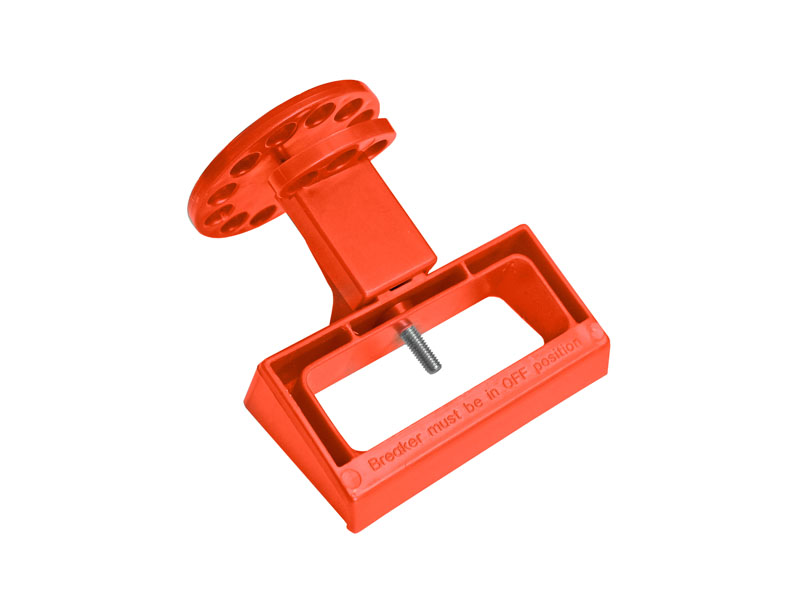

3 Phase Circuit Breakers Lockout – LOK055
Designed for 3 phase breakers, this large lockout fits over the switch and then the screw is tightened using the clock style section. When tight the clock section is locked to the main body through the attached sliding section. Will accept 3 separate padlocks with a shackle diameter up to 8mm.

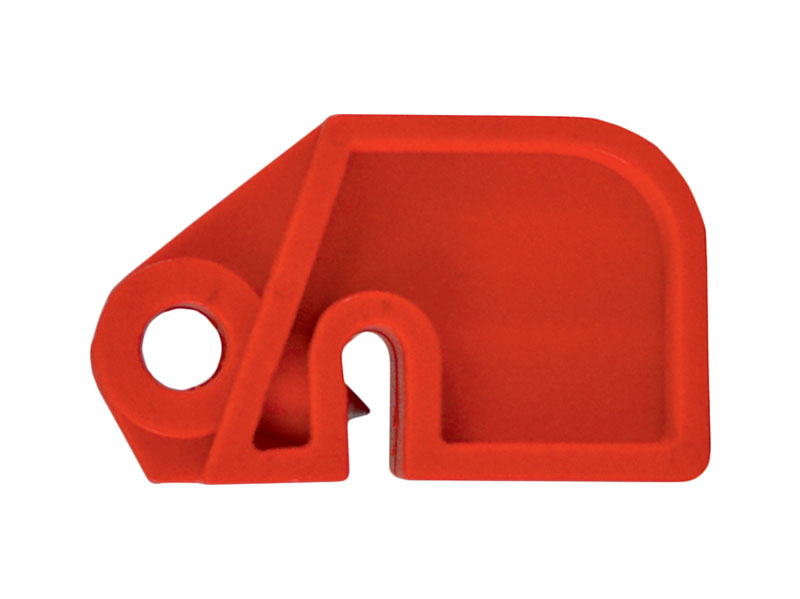

Fuse Lockout – LOK140
A universal fuse lockout which is fitted using an internal grub screw.
Suitable for use on fuse holders from 20 Amp to 400 Amp, manufactured from nylon. Maximum clamping size ≤ 5mm

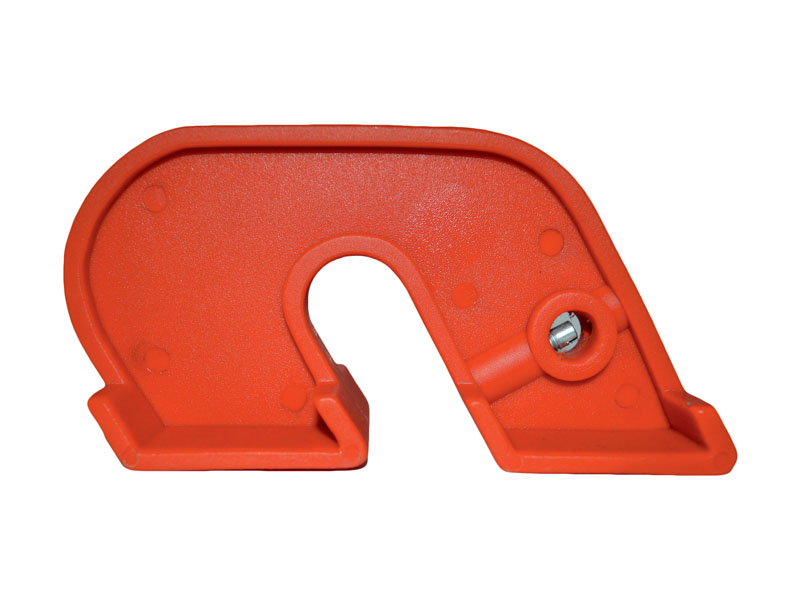

Large MCB Lockout – LOK142
A universal lockout which is fitted using an internal grub screw.
This version is suitable for larger circuit breakers and can be fitted to toggles ≤ 35mm in depth and 40mm wide.

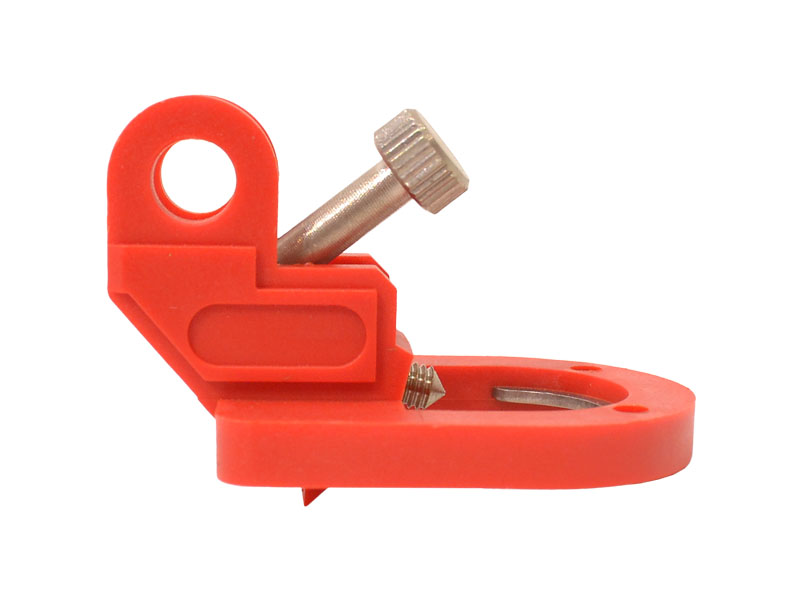

Medium Circuit Breaker Lockout – LOK209
For use on medium sized circuit breakers. Turn the circuit breaker into the off position and place the lockout over the toggle switch. Tighten the screw thread to the toggle with the integral pedal sitting into the housing of the breaker to prevent removal. Maximum toggle width: 20mm

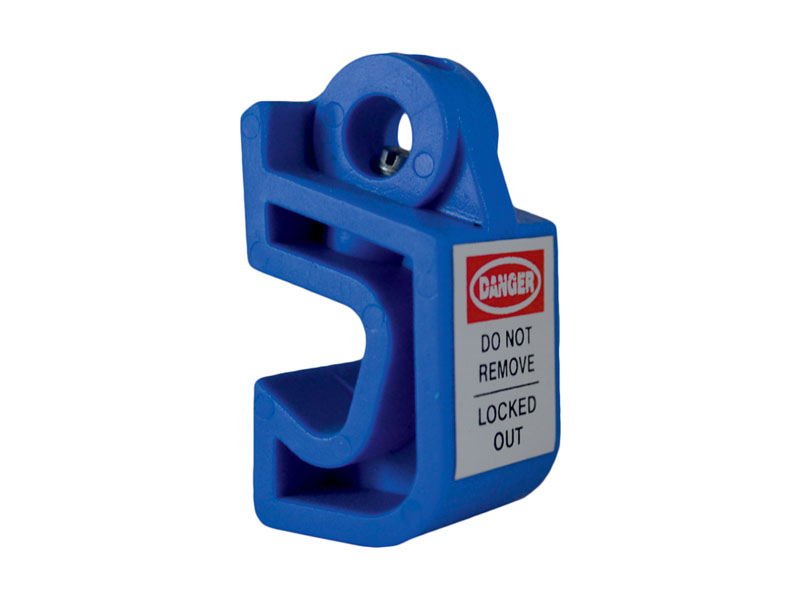

Universal MCB Lockout – LOK141
A universal lockout which is fitted using an internal grub screw.
This version is suitable for larger toggles ≤12mm in depth and 22mm wide.

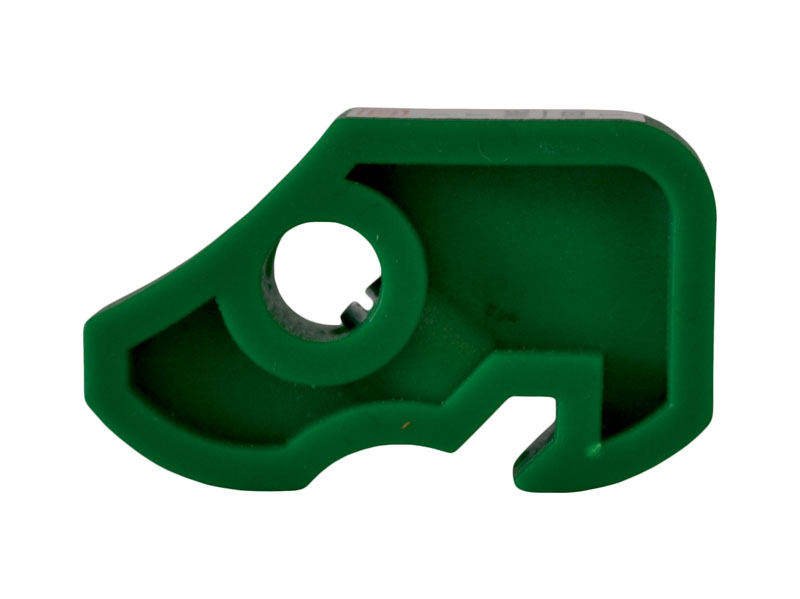

Universal MCB Lockout – LOK138
An MCB lockout which is fitted using an internal grub screw. This version is suitable for most Siemens style branded circuit breakers. Maximum clamping size ≤ 5mm.

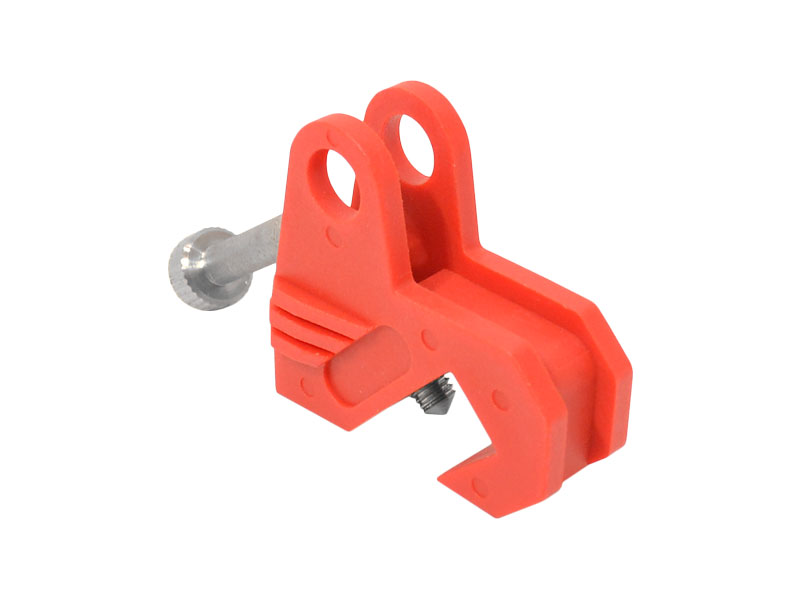

Universal Mini Circuit Breaker Lockout – LOK043
This universal MCB lockout has been designed to fit on almost any size of MCB, regardless of size or the position of the holes on the breaker.
Simply turn off the breaker and place the lockout over the switch. Use the thumbscrew to tighten the internal grub screw onto the switch, locking the unit into place. The thumbscrew will then fold down on its integral hinge, allowing a padlock to be fitted onto the lockout preventing the thumbscrew – and the unit from being removed.

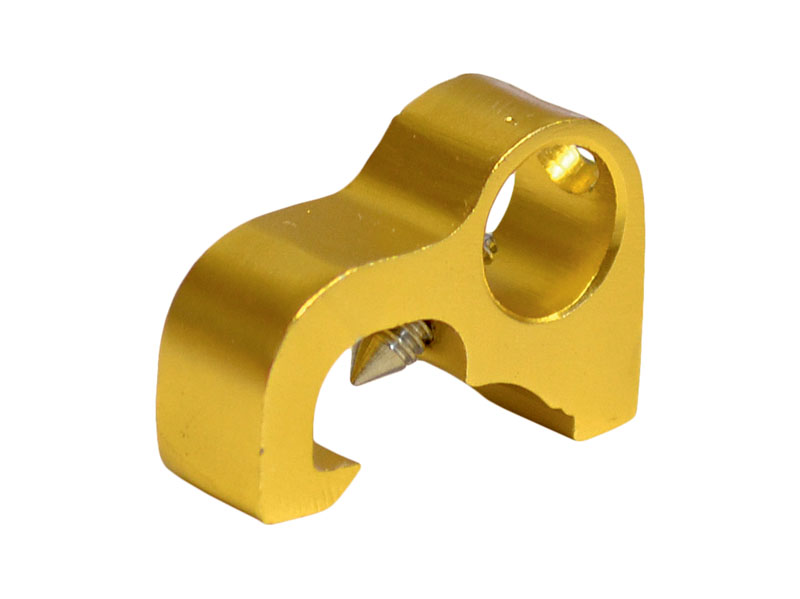

Universal Mini MCB Lockout – LOK161
Our smallest MCB toggle lock is simple to use – place over the breaker and tighten the internal grub screw.
Once secure fit a padlock or appropriate hasp through the hole to prevent unauthorised removal. Maximum clamping size ≤ 6mm

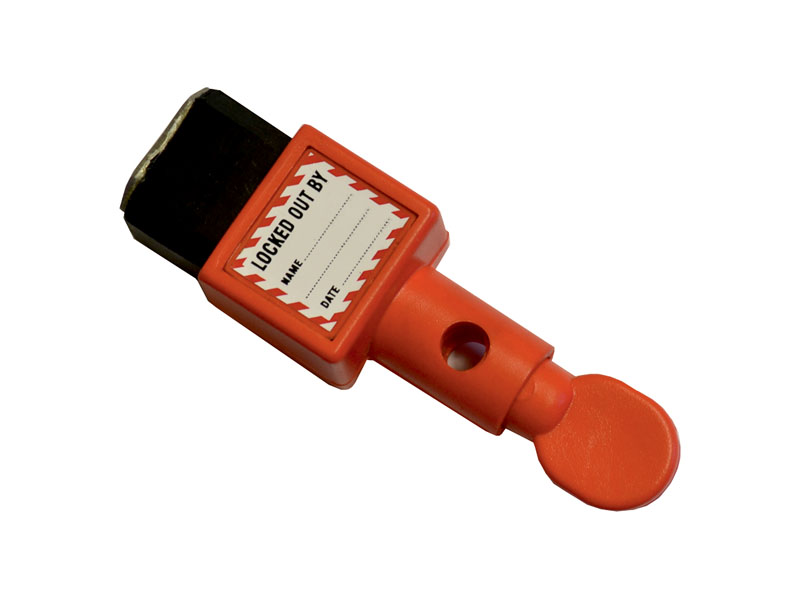

3 Pin Plug Lockout – LOK123
Ideal for use with power supplies of computers and similar devices. This lockout inserts into the back of the power supply and the circular paddle is then rotated to lock the device in position. A padlock can then be used to prevent the device being removed.
Electrical Panel Lockout – LOK066
Lockout Electrical Panel Buttons and Switches with no inbuilt lockout provision.
Attach the base plate directly onto the electrical panel. Isolate the unit by placing the house unit over the top preventing access to the switch.
